Surgical Trolley Anesthesia Machine
Roll over image to zoom in
Place of Origin: China
Brand Name: Healicom
Model Number: HA-6100
Power Source: Electricity
Warranty: 1 Year
Material: Metal, Plastic
Quality Certification: ce
Instrument classification: Class II
Rapid oxygen supply: 35L/min-75L/min
Tidal volume(Vt): 0, 20 mL ~ 1500 mL
Frequency(Freq): 1bpm ~ 100 bpm
Surgical Trolley Anesthesia Machine
Application The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients.
Features

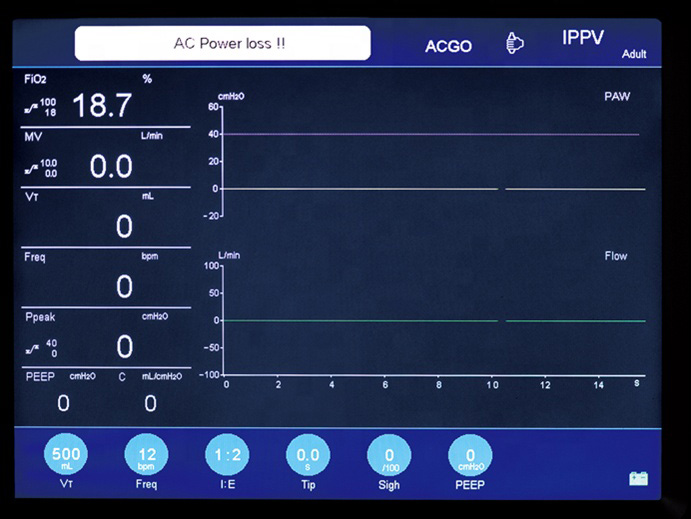

1. 10.4” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

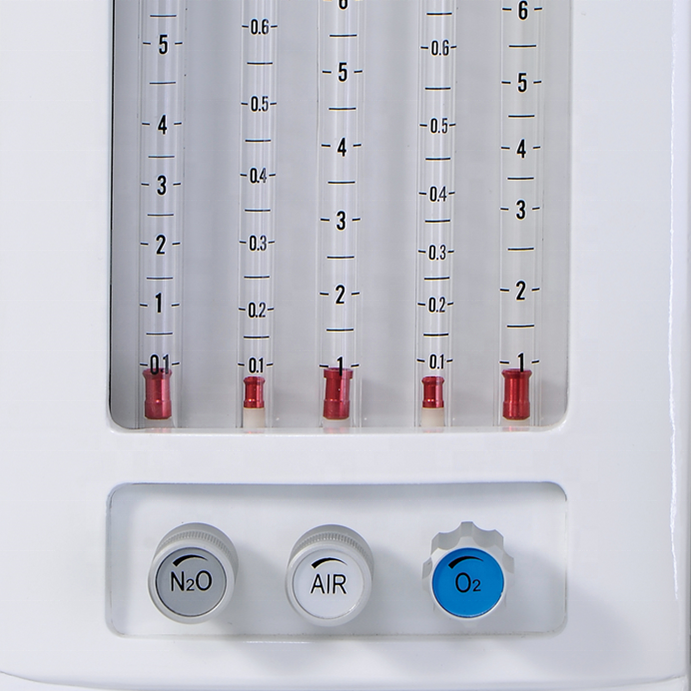

2. High precision flow meter, instantly know the fresh gas flow to your patient.
3. Integration breathing circuit design, ensure easy operating and keep tidy.
4. Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
5. Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
6. Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects; Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.
7. Vital sign monitor and Anesthetic gas monitor are optional. 8. ETCO2 module is optional.
Safety
1. Three level alarming system, visual and sound alarm information.
2. With lots of alarming, reminding and protection functions.
3. Advanced power management control technology.
4. With built-in backup power source, when outside power source goes off, back-up power source starts to work.

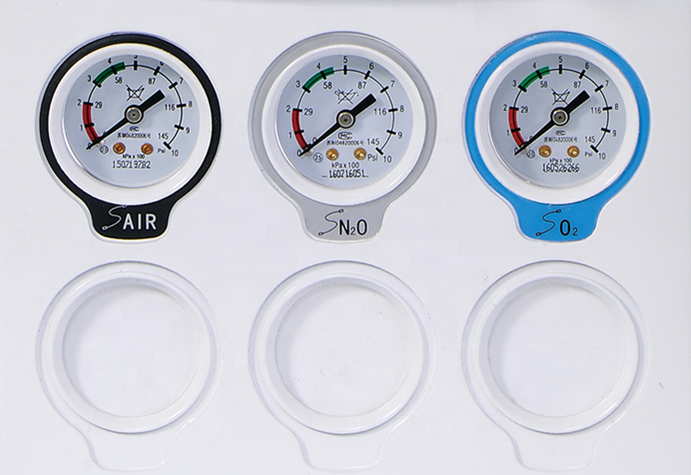

5. Low O2 pressure alarm and N2O cut-off protection.
|
Ventilation modes
|
IPPV; A/C; PCV; SIMV; SIGH
|
|
Graphical display
|
P-T(pressure – time)
F-T(flow – time) P-V loop (pressure – volume loop) |
|
Ventilator parameter ranges
|
|
|
Flow meter
|
O2(0.1-10L/min) N2O(0.1-10L/min)
AIR(0.1-10L/min)
|
|
Rapid oxygen supply
|
35L/min-75L/min
|
|
Tidal volume(Vt)
|
0, 20 mL ~ 1500 mL
|
|
Frequency(Freq)
|
1bpm ~ 100 bpm
|
|
I/E
|
4:1~1:8
|
|
PEEP
|
0cmH2O ~ 30 cmH2O
|
|
Pressure triggering sensitivity(PTr)
|
-20 cmH2O ~ 0 cmH2O(Based on PEEP)
|
|
Flow trigger sensitivity (FTr)
|
0.5 L/min ~ 30 L/min
|
|
Pressure control (PC)
|
5 cmH2O ~ 60 cmH2O
|
|
SIGH
|
0(off) 1/100 ~ 5/100
|
|
Apnea Ventilation
|
OFF,5 s ~ 60 s
|
|
Pressure Limit
|
20 cmH2O ~ 100 cmH2O
|
|
Monitored Parameters
|
|
|
Frequency(Freq)
|
0 /min ~ 100 /min
|
|
Tidal volume(VT)
|
0 mL ~ 2000 mL
|
|
MV
|
0 L/min ~ 100 L/min
|
|
Oxygen concentration
|
15 % ~ 100 %
|
|
Alarm and protection
|
|
|
The AC power failure alarm
|
Power failure or no connection
|
|
Internal battery backup low voltage alarm
|
<11.3±0.3V
|
|
No tidal volume
|
≤5Ml within 6s
|
|
High oxygen concentration alarm
|
19%-100%
|
|
Low oxygen concentration alarm
|
18%-99%
|
|
High Airway pressure alarm
|
20cmH2O-100cmH2O
|
|
Low Airway pressure alarm
|
0cmH2O-20cmH2O
|
|
High Minute Volume alarm
|
Adult(5L/min-20L/min) Paed(1L/min-15L/min)
|
|
Low Minute Volume alarm
|
0-10L/min
|
|
Continuous Pressure alarm
|
(PEEP 1.5kPa) over 16s
|
|
Suffocation warning
|
5s-60s no spontaneous ventilation
|
|
The maximum limited pressure
|
<12.5 kPa
|
|
Fan error
|
Show on screen
|
|
Oxygen deficit
|
Show on screen
|
|
Working conditions
|
|
|
Gas source
|
O2,N2O,AIR
|
|
Pressure
|
280kPa-600kPa
|
|
Voltage
|
100-240V
|
|
Power frequency
|
50/60Hz
|
|
Input power
|
85VA
|
