Portable Digital Electro Cardiogram ECG Machine

In stock

Place of Origin: China
Brand Name: Healicom
Model Number: HE-06C
Power Source: Electricity
Warranty: 1 Year
Material: Plastic
Quality Certification: ce
Instrument classification: Class II
Channels: 6
Lead: 3/6/12-lead display,12-lead Sync collection
Multi-language: interface and report
Power supply: AC/DC
Display: 7″TFT-LCD(touch screen)

Description

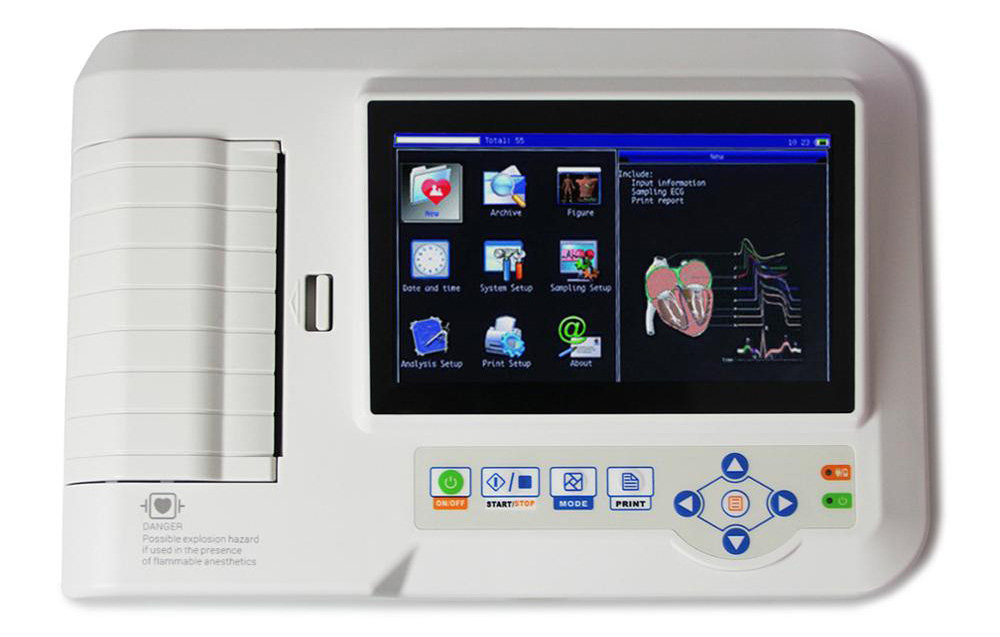

Portable Digital Electro Cardiogram ECG Machine

Hdc0759db7fa9418196451c0a24825963k

Instructions

HE-06C is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management.

Function

1. Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
2. Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).
3. Full-digital filter design, anti-baseline drift, AC and EMG interference.
4. Adjust the baseline automatically, optimize the print setting and optional rhythm leads. 5. In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
6. Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
7. With the functions of auto-measurement, auto-analysis and auto-diagnosis for routine ECG parameters, which reduces the doctor’s burden and improves work efficiency.
8. Sync collection for 12-lead ECG, multiply printing formats, including 2×6+1(rhythm lead), 2×6, 3×4, 3×4+1(rhythm lead), 4×3, 4×3+1(rhythm lead), 6×2, 6×2+1(rhythm lead), rhythm 2, rhythm 3, rhythm 4, rhythm 5, rhythm 6, rhythm 7, channel record, etc.
9. Display of 3/6/12-lead ECG, “Lead off” and “Lack of paper” on one screen, and with ECG DEMO mode. Auto-check and auto-analysis for ECG parameters, ECG waveform can be recorded manually or automatically. And patient information can be stored by case database.
10. Time print can be set to every 1/2/3/5/10/20/30/60 minutes. 1
1. Print setting, including “Print and save”(print waveform and save case), “Print no save”(only print waveform but not save case), “Save no print”(only save case but not print waveform). 12. AC/DC, built-in rechargeable lithium battery and auto-protection circuit, and automatic power off when there is no operation in appointed time.
13. Store more than 1000 cases, convenient for case review and statistic.
14. Multi-language(Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakhstan, Russian and Ukrainian) interface and report.

Technical Specifications

Input mode
floating and defibrillation protection
Frequency response
0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR
>60dB, >100dB(add filter)
Time
constant:≥ 3.2s
Patient leak current
<10µA
Calibration voltage
1mV
Sensitivity
2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level
<15µVp-p
Input circuit current
≤50nA
Input impedance
≥50MΩ
Sampling accuracy
12-bit
Safety classification:
class I, type CF and defibrillation-proof applied part
Recording mode
thermal printing system
Auto record
set record according to auto record format and mode, automatically switching leads, measuring and analyzing.
Rhythm record
set record according to rhythm record format and mode, automatically measuring and analyzing.
Manual record
set record according to record format, manually switching leads.
Measurement parameters
HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Paper size
80mm(W)×20m(L)
Power frequency filter
AC 50Hz/60Hz(-20dB)
Sampling frequency
1000Hz
EMG interference filter
25Hz/35Hz (-3dB)
Paper speed
Auto: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5%
Rhythm: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5%
Manual: 5, 6.25, 10, 12.5, 25, 50, 100mm/s, ±5%
H5423558793314e709039b4e1ef05f9d1y

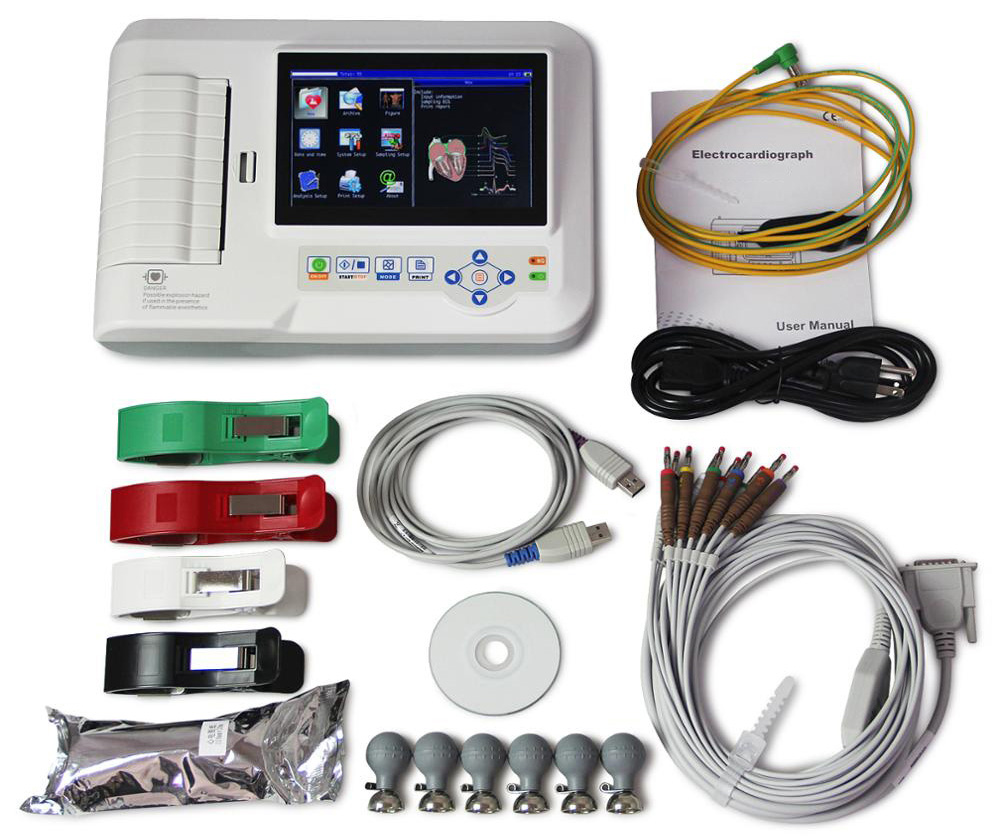

Accessories

• lead cable
• limb electrode
• chest electrode
• thermal recording paper
• power cord
• earth wire
• user manual

Hc556b1a28f19408aa63fde584dfe18ff2
Hb703e4b850a64d3e91ecb50d4f3f7565h
H1f2a1b6b85a246eea7de27df594a18fdX
