ICU Portable Color LCD Patient Monitor

In stock

Place of Origin: China
Brand Name: Healicom
Model Number: 8000B

Description

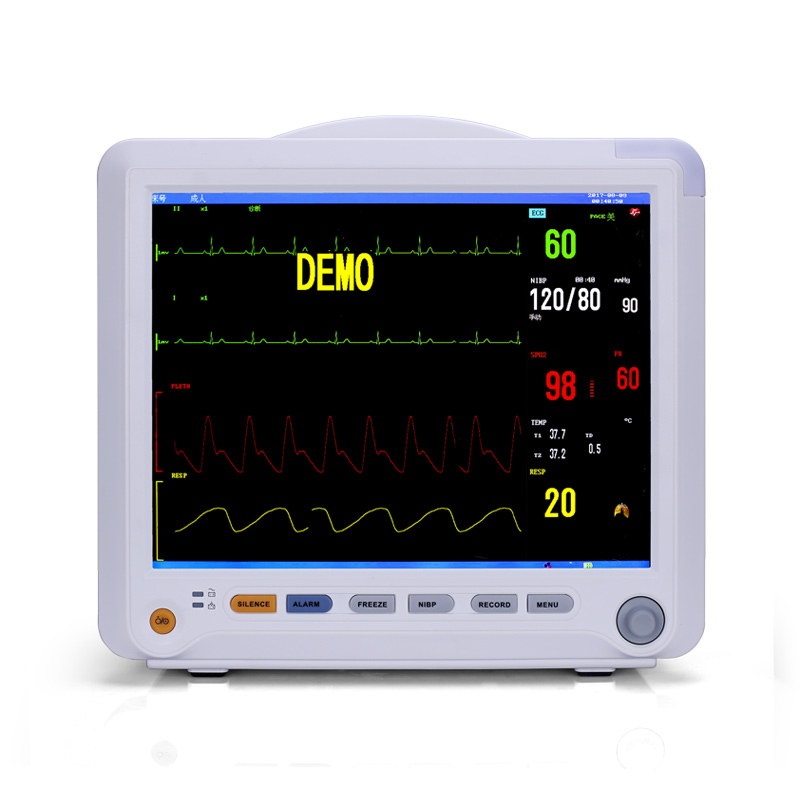

ICU Portable Color LCD Patient Monitor

H881c8312c58a41baab21326fa99083787

Features: ·

12.1 “high brightness TFT color LCD screen. · Respiration oxygenation diagram, large character interface diagram, dynamic trend diagram and other interface display modes are convenient for observation. · Support multi-channel waveform display on the same screen. · Support automatic analysis of abnormal ECG waveform and ST segment analysis. · High sensitivity of blood oxygen saturation detection, fully supporting weak pulse detection. · Manual, automatic and fast blood pressure measurement methods. · Equipped with data power-off storage function. · Recorded and played back ecg waveform, blood pressure measurement data, trend chart, alarm events, etc. · Built-in lithium battery, which can be directly inserted and removed externally. · Wide application scope, adults, children and newborns can use. · Suitable for operating room, ward and other environments. · Support wired or wireless central monitoring system.
H021e62b2a1484ca8a8b111abf62638e9G
TECHNICAL SPECIFICATIONS
ECG
NIBP
Input
3/5 wire ECG cable
Test method
Oscillometer
Lead section
I II III aVR, aVL, aVF, V
Philosophy
Adult, Pediatric and Neonate
Gain selection
*0.25, *0.5, *1, *2,Auto
Measurement type
Systolic Diastolic Mean
Sweep speed
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Measurement parameter
Automatic, Continuous measurement
Heart rate range
15-30bpm

Measurement method Manual

mmHg or ±2%

Calibration
±1mv
Accuracy
±1bpm or ±1% (select the bigger data)
SPO2
2-Temperature (Rectal & Surface)
Display Type
Waveform, Data
Number of channels
2 channels
Measurement range
0-100%
Measurement range
0-50℃
Accuracy
±2% (between 70%-100%)
Accuracy
±0.1℃
Pulse rate range
20-300bpm
Display
T1, T2, ☒T
Accuracy
±1bpm or ±2% (select the bigger data)
Unit
ºC/ºF selection
Resolution
1bpm
Refresh cycle
1s-2s
Respiration (Impedance & Nasal Tube)
Measurement type
0-150rpm
Accuracy
±1bm or ±5%, select the bigger data
Resolution
1rpm
Standard accessories
NIBP cuff & tube
ECG cable & electrodes
SpO2 sensor
TEMP probe
Lithium-ion battery
Power cable
Operator’s manual
Optional accessories
IBP
CO2
Nellore SpO2
Printer
