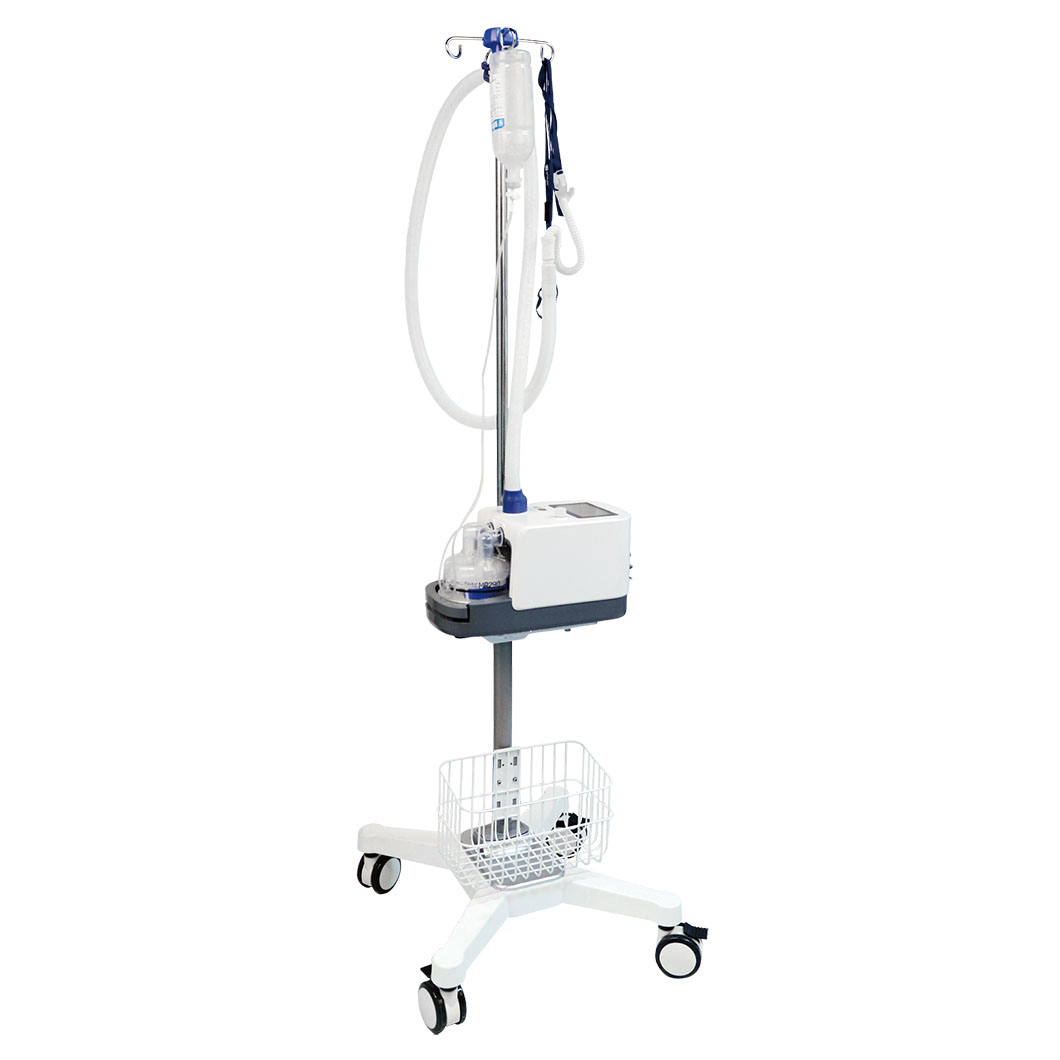

High Flow Humidifier Nasal Cannula machine
Roll over image to zoom in
Place of Origin: China
Brand Name: Healicom
Model Number: HF5
Instrument classification: Class II
Warranty: 1 Year
Flow rate: 2- 80L/min
Respiratory rate: >24 bpm
High Flow Humidifier Nasal Cannula machine
Provide a certain flow, heated and humidified fresh gas for treatment, and provide SpO2 monitoring. For patients with spontaneous breathing, these patients include patients with humidification therapy, oxygen therapy, tracheal intubation and tracheotomy.

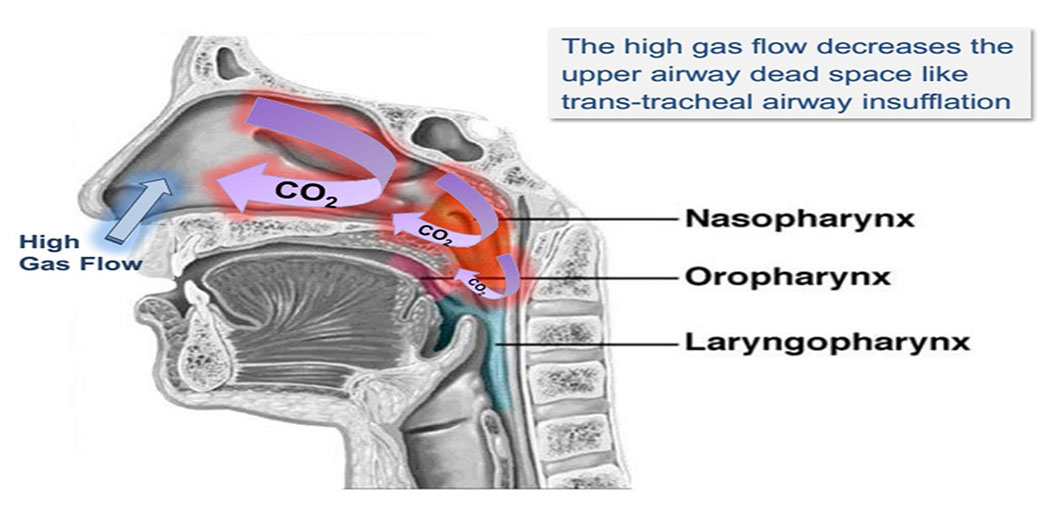

Washout of nasopharyngeal dead space
Application scenarios
Wide range of application The 2-80L /min wide range flow control can efectively flush the dead space (physiology), avoid CO2 retention, meet the treatment requirement of both infants and adults, clinically suitable for patients at different ages.
Clinical application
• Mild respiratory distress (respiratory rate > 24 bpm)
• ARDS and other Type I Respiratory Failure (100 mmHg≤PaO2/FiOz < 300 mmHg)
• Type II Respiratory Failure
• Invasive Ventilation Weaning
Simple and practical

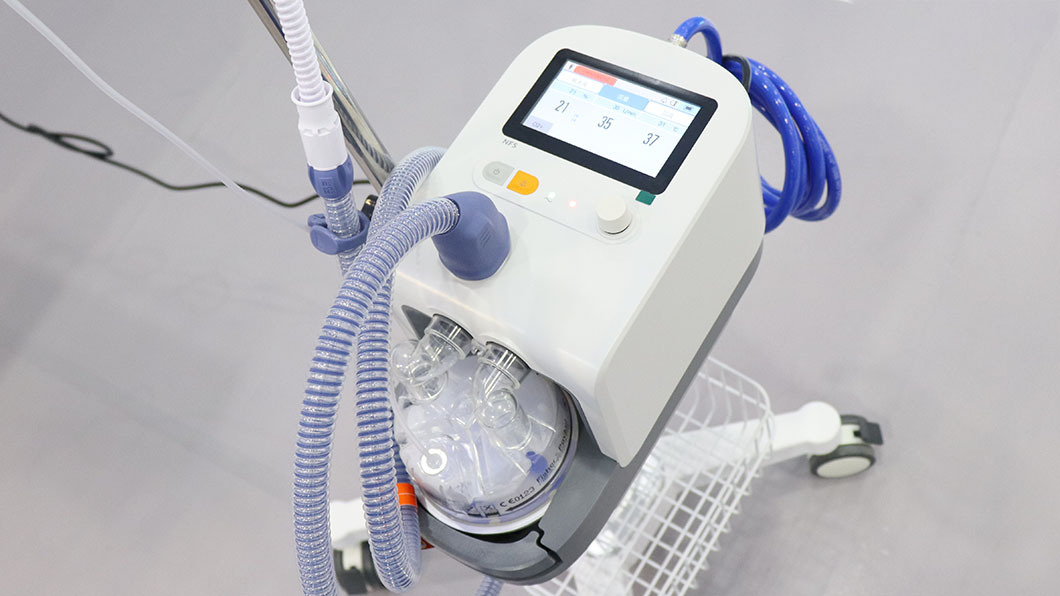

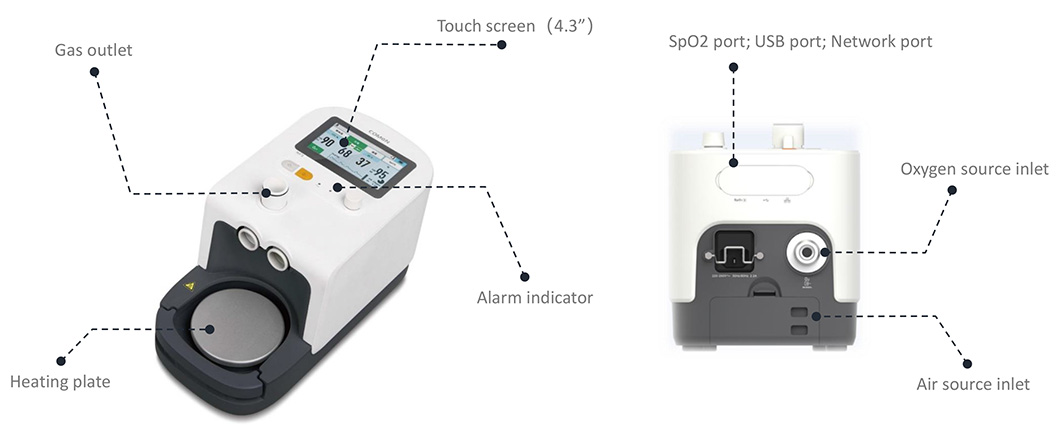

• Ultra age touch screen: NF5 is equipped with a 4.3-inch touch screen, which allows easy and quick operation by touch and navigation knob.
• Electronic Air-O2 mixer system: easy to set up flow rate and O2 concentration.
• Intuitive UI design: large font, easy for caregiver to operate and observe.
Safe and comfortable
• Multi-position temp monitoring: HF5 is equipped with 3 temp sensors, which enable real-time temp monitoring, synchronized closed-loop feedback, joint high temp alarm, smart water level management and over-temp protection function to ensure safer heating.
• High-performance nasal cannula: ergonomic design, soft and comfortable, free of constriction.
• Ultra-quiet design: The ultra-quiet turbine significantly reduces noise, provides a quiet Oz therapy environment, reduces irritability.
SpO2 monitoring Optional SpO2 monitoring function, real-time monitoring of the patient’s O2 concentration, ease evaluation of the effectiveness of high-flow O2 therapy, so that doctors can optimize the treatment plan in real time.
Intra-hospital transport
• High performance turbine, no need for compressed air supply
• Integrated battery for transportation
• Light and compact medical Tolley ease intra-hospital transport
Technical Specifications
|
Screen Size
|
4.3″ touch screen
|
|
Fast heat
|
Using the MR290 humidification tank, it reaches 31 °C in 10 minutes and 37 °C in 30 minutes under 35 L/Min flow and initial temperature of 23 ± 2 °C
|
|
Method
|
Electronic mixer
|
|
O2%
|
21 – 100% (increments of 1 %)
|
|
O2 flow input range
|
Flow range: 0 ~ 80 L/Min
|
|
Flow rate
|
Adult：10-80L/Min
Child：2-30L/Min
|
|
Temp
|
Adult：31～37°C
Child：34°C
|
|
Temp adjustment
|
7
|
|
Humidity
|
@37°C: Catage 1 (>33 mg/L)
@2～60L/Min
Other: Catage 2 (>12 mg/L)
|
|
Fast O2 flush
|
Yes
|
|
Trend
|
7 days (168h) graphical and tabular trend
|
|
Auxiliary O2 supply
|
0-30L/Min
|
|
Auto refill
|
Water tank can add water automatically
|
|
Filter change reminder
|
1000 hrs.
|
|
Communication interface
|
RJ45 network interface, USB port
|
|
Trolley Dimensions
|
480mm*480mm*1590mm
|
|
Plate height
|
600mm
|
