Automatic Electronic Portable Infusion Pump

Sold By: Best Online Shopping Experience in Bangladesh | Tista

In stock

Place of Origin: China
Brand Name: Healicom
Model Number: HIP-3
Power Source: Electricity
Warranty: 1 Year
Material: Plastic
Quality Certification: ce
Instrument classification: Class II
Accuracy: ±3%
Delivery time range: 00h01min~99h59min (1 min step)
Volume limit range: 0.0-9999ml (1 ml step)
Total Volume Range: 0.0-9999ml (1 ml step)
Purge Rate: 600.0ml/h (Adjustable)

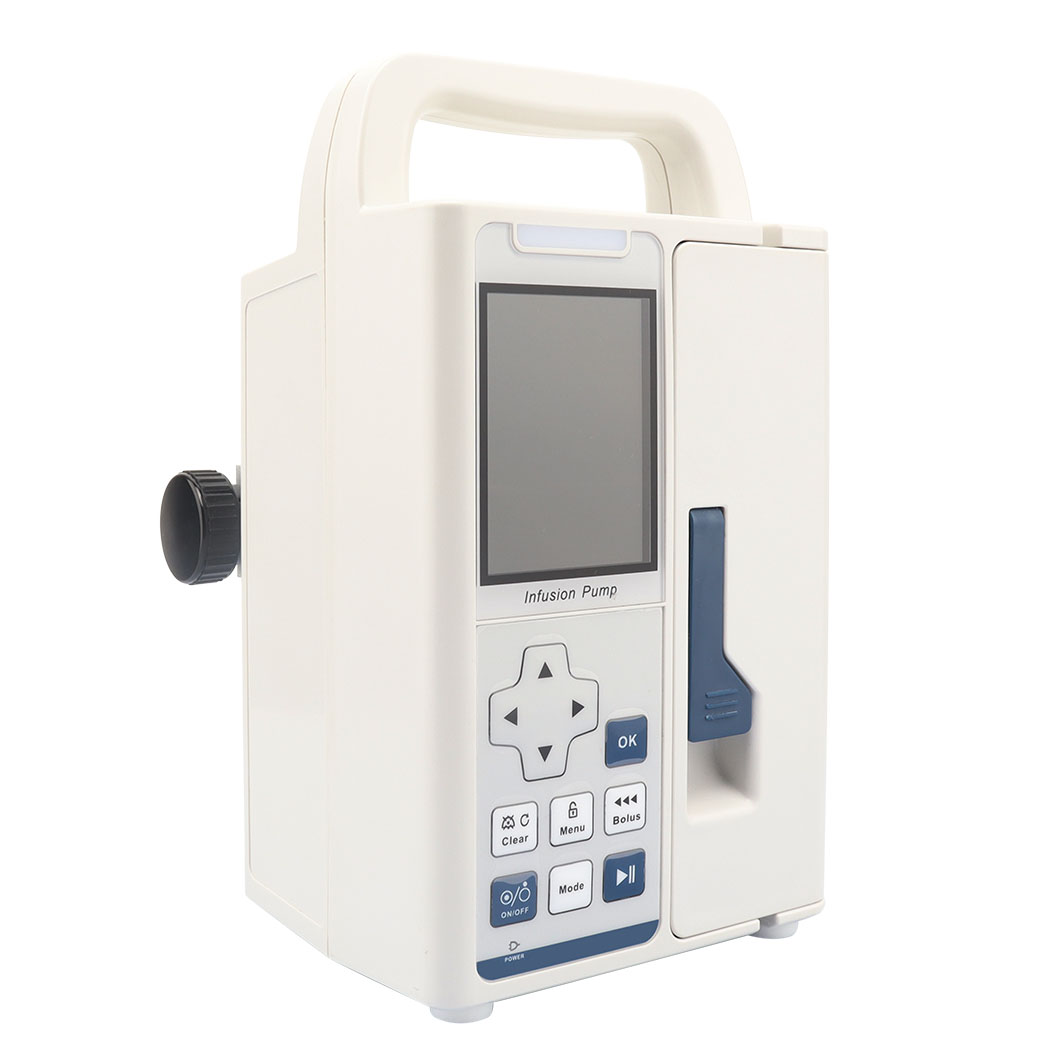

Automatic Electronic Portable Infusion Pump

H1e8f48402542479b8a17b809702b06b78
Features
• Open system – compatible with all standard IV sets.
• Large COLOR TFT display with adjustable brightness. • Manual/Automatic Bolus. • Anti-bolus system.
• DPS dynamic pressure display.
• 2000 events stored can be checked and downloaded.
• Five work modes: Rate Mode, Time Mode, Dose Mode, Sequential Mode and Drug Library Mode.
• Drug library with 1030 drug names (Optional).
• 8 Hours Internal Battery continuous operation.
• Visual and audible Alarm system and accurate infusion rate for safety and reliability.
• Very accurate and reliable.
• Friendly user interface.
• Dynamically display working status.
• KVO and Bolus functions.
• Automatically record the setting of last infusion.
• Preset Solution Volume for nurse workload reduction.
• Change the flow rate without stop during infusion
• Three levels of the occlusion: high, middle, and low.
• Easy to clean through the open door design.
Hb7574ba0d1494204a6ece290b3d561ac2


Simple and easy to use

● Open system – compatible with all standard IV sets.
● Large COLOR TFT display with adjustable brightness
● Vertical and Horizontal mounting clamp
● 8 Hours Internal Battery continuous operation.
Accurate safety
● Five work modes: Rate Mode, Time Mode, Dose Mode
● Drug library with 1030 drug names (Optional).
● 2000 events stored can be checked and downloaded.
● Automatically record the setting of last infusion.
● KVO and Bolus functions.
● Manual/Automatic Bolus.
Heb499838415c43d18c2f52544be6fc831
H2c0c28fdca454d0ba44aae57ae52a300R


Wide range of adaptation

● Very accurate and reliable.
● Visual and audible Alarm system and accurate infusion rate for safety and reliability.
● DPS dynamic pressure display.
● Three levels of the occlusion: high, middle, and low.
● Anti-bolus system.



Energy conservation and environmental protection

● Preset Solution Volume for nurse workload reduction.
● Change the flow rate without stop during infusion
● Dynamically display working status.
● Easy to clean through the open door design.
Hf360f4e6ddba42dc8e52f0493afe4012p
Technical Specifications
Fit IV tubes
Can be used with any brand IV set after exactly calibration
Pump Type
Peristaltic finger pump
Accuracy
±3%
Delivery rate range
0.1ml/h~1500ml/h (0.1ml/h~99.9ml/h, 0.1ml/h step; >99.9ml/h, 1ml/h step)
Delivery time range
00h01min~99h59min (1 min step)
Volume limit range
0.0-9999ml (1 ml step)
Total Volume Range
0.0-9999ml (1 ml step)
Purge Rate
600.0ml/h (Adjustable)
KVO Rate
0.1~20.0ml/h. Programmable and adjustable
Occlusion pressure
LOW:60(±15)kPa, MEDIUM: 90(±15)kPa or HIGH: 120(±15)kPa (Programmable and adjustable)
Alarms
Rate Abnormal, Door Open, Air-in-Line, Occlusion, Bottle Empty, Battery Empty, No Battery, Key Holding During Infusion/ Pause, Infusion
Complete, No Action, Battery Low
Three levels of alarm volume LOW, MEDIUM or HIGH
Dose Mode
Volume:0.1-999.9ml(0.1ml step)
DRUG MASS:0.1-999.9mg 0.1mg step)
DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step)
WEIGHT:0.1-300kg(0.1kg the least step)
Dose unit: ng/kg/min, ug/kg/min, mg/kg/min, g/kg/min, ug/kg/h,mg/kg/h,
g/kg/h,ug/min,mg/min,g/min,ug/h,mg/h,g/h,U/min,U/h,IU/h,U/kg/h,ml/h
Bolus function
Bolus rate:1.0~1200ml/h,Bolus volume:1.0~100ml
Programmable and adjustable, Automatic/Manual bolus available
Drug library Mode
10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min,etc.
Makes drug dispensing more convenient and safer.
Sequential mode
Available

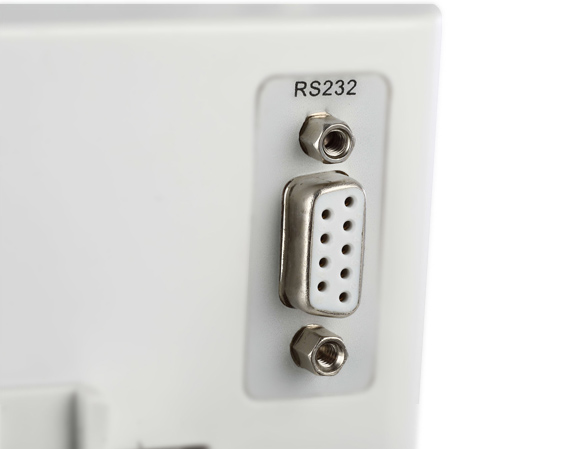

Interface
RS-232
Brightness
1~10 levels can be selected
History records
2000 events stored can be checked and downloaded
Power source
AC power supply: AC 100 to 240V( +/-10%),50/60Hz;
DC Power supply: 12~15V, power>15W;
Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh.
8 hours of continuous operation
Accessories
AC power line, Operational manual
Protection Class
Class I, Type CF,IPX4
Dimension /N.W
120mm*100mm*215mm , 1.7kg
Packing size/G.W
250*190*155mm, 2.5KG
Hc20f5b02ee364c47af4cea6bb2b03048l
Hd295a3f05ff342e4b522df58daa8ef6bm
Hef3152043bc04ce786b07d2f6a8a4826c
