12 inch Portable Patient Monitor

In stock

Place of Origin: China
Brand Name: Healicom
Model Number: WTP-8000

Description

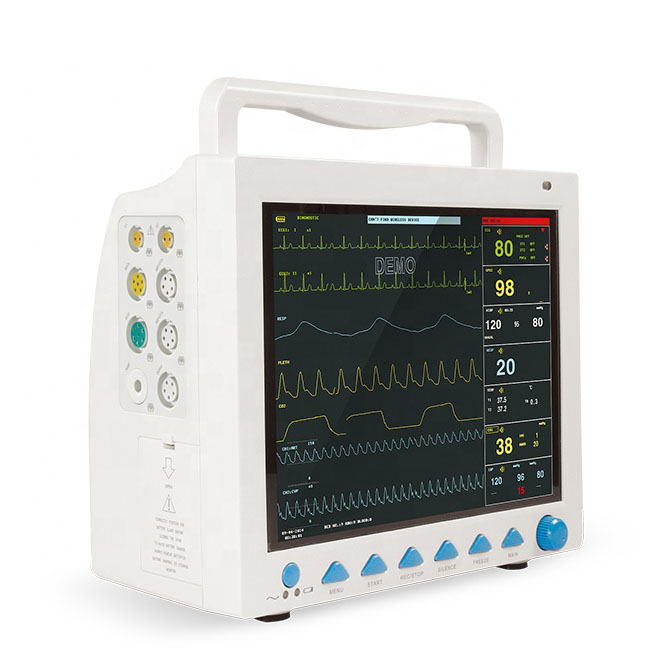

12 inch Portable Patient Monitor

He57b7315604341a7894a5fd12bdb3dac3
Functions
Standard parameters:
ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1. ECG: Heart rate (HR), ECG waveform, Arrhythmia and ST-segment analysis
2. RESP: Respiration rate(RR), Respiration waveform
3. SpO2: Oxygen saturation(SpO2), Plethysmogram(PLETH) waveform, Pulse rate(PR), Bar graph
4. NIBP: Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN) 5. TEMP: T1, T2, TD It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
H7117cab5a60b4f34ac56a7e79764ccecW
Technical Parameters



ECG

Lead Mode
3-lead or 5-lead
Lead selection
I, II, III, aVR, aVL, aVF, V
Waveform
5-lead, 2-channel
3-lead, 1-channel
Gain
2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
Scan speed
12.5mm/s, 25 mm/s, 50 mm/s
HR
Measurement and alarm range: 15~350bpm
Accuracy: ±1% or ±1bpm, whichever is greater
Alarm accuracy: ± 2 bpm
Resolution: 1 bpm
ST-segment monitoring
Measurement and alarm range: -2.0mV~+2.0mVAccuracy: -0.8mv~+0.8mv ±0.04mv or ±10%, whichever is greater
Other range: unspecified
Arrhythmia analysis
ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Pacemaker
YES



Respiration

Method
R-F(RA-LL) Impedance
Respiration rate
Measurement and alarm range: 0~150rpmResolution: 1 rpm
Measurement accuracy: ±2 rpm
Alarm accuracy: ±3 rpm
Apnea alarm: 10~40s
Scan speed
6.25 mm/s, 12.5 mm/s, 25 mm/s



NIBP

Method
Oscillometric
Mode
Manual, Auto, STAT
Measurement interval in AUTO mode
1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
Measurement period in STAT mode
5 minutes
Measurement and alarm range
10 ~ 270 mmHg
Resolution
1 mmHg
Cuff pressure accuracy
±3 mmHg
Measurement accuracy
Maximal mean error: ±5 mmHg Maximal standard deviation: 8mmHg
Over-pressure protection
Other mode: 297±3 mmHg Dog mode: 240±3 mmHg
Cat mode: 147±3 mmHg



SpO2

Measurement and alarm range
0 ~ 100%
Resolution
1%
Measurement accuracy
70%~100%: ±2%; 0%~69%: unspecified
PR
Measurement and alarm range
30 ~ 250 bpm
Measurement accuracy
±2 bpm or ±2%, whichever is greater



Temperature

Resolution
0.1℃
Channel
Dual-channel
Measurement and alarm range
0-50℃
H18da8b8b58e0454caf6fd6decb3b40e7c
Accessories 1) Digital BD7 veterinary tongue-clip SpO2 sensor (1M) 2) General digital SpO2 sensor extension cable (2M) 3) Neonatal capsule single tube repeatable cuff (6-11cm) 4) NIBP extension tube 5) 5-lead ECG lead cable (American-Standard) 6) ECG veterinary clip (*5) 7) Transvaginal TEMP probe 8) Power cord 9) User Manual
Hd5f3f58f0872430a9bf6c50c4c43ea2cO
H69663d0d719242d996cb33e0066cec63U
