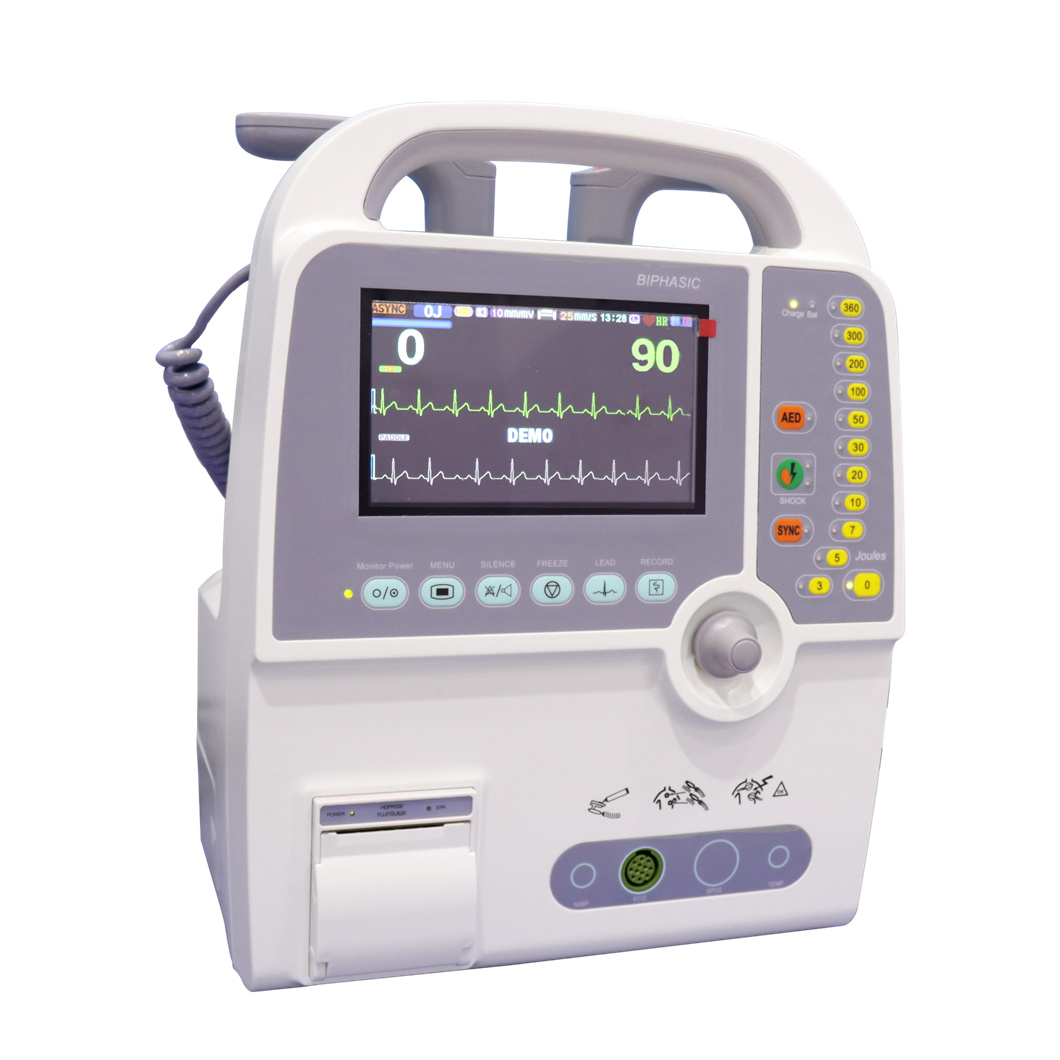

Portable Automated External Defibrillator Machine
Place of Origin: China
Brand Name: Healicom
Model Number: HC-8000A
Power Source: Electricity
Warranty: 1 Year
Material: Metal, Plastic
Quality Certification: ce
Instrument classification: Class II
Asynchronized: External defibrillator
Energy: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joule
Description
Portable Automated External Defibrillator Machine
Features:
1. Voice prompt
2. Standard built-in Recorder, Defibrillation discharge trigger recording
3.The ECG waveform via paddle electrode
5. Standard Li-ion battery
4. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on screen
6. 7 inches TFT color display

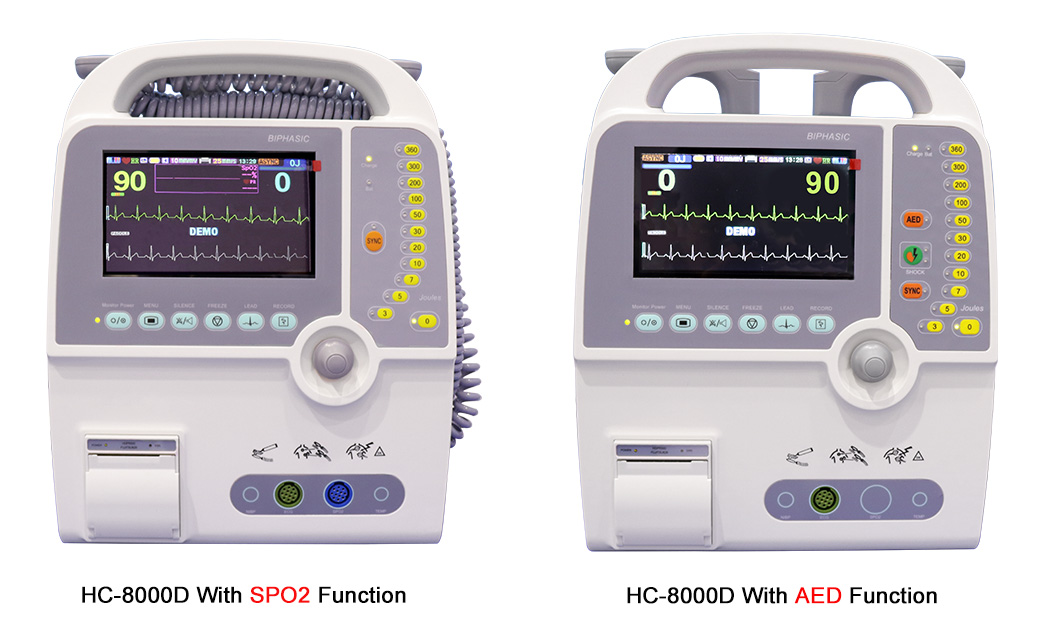

Optional: Spo2 / AED
Standard: Biphasic defibrillation / ECG / Print / Li-ion Battery
|
Defibrillator
|
|
|
ECG
|
3-lead ECG cable, or 5-lead ECG cable, paddles.
Displayed on monitor, paddles, I, II, III,AVR, AVL, AVF, V. |
|
NIBP
|
Method: automatic oscillation
Working mode: manual/automatic |
|
TEMP
|
Measurement range: 20-45ºC
|
|
SpO2
|
Display: SpO2 value, pulse histogram, waveform, pulse
|
|
Pulse range
|
0~300bpm Pulse accuracy: ±2bpm
|
|
Defibrillator
|
Biphasic/ Manual / External Synchronous / Asynchronous Defibrillation
|
|
Charge Time
|
Less than 10 seconds to 360 Joules
|
|

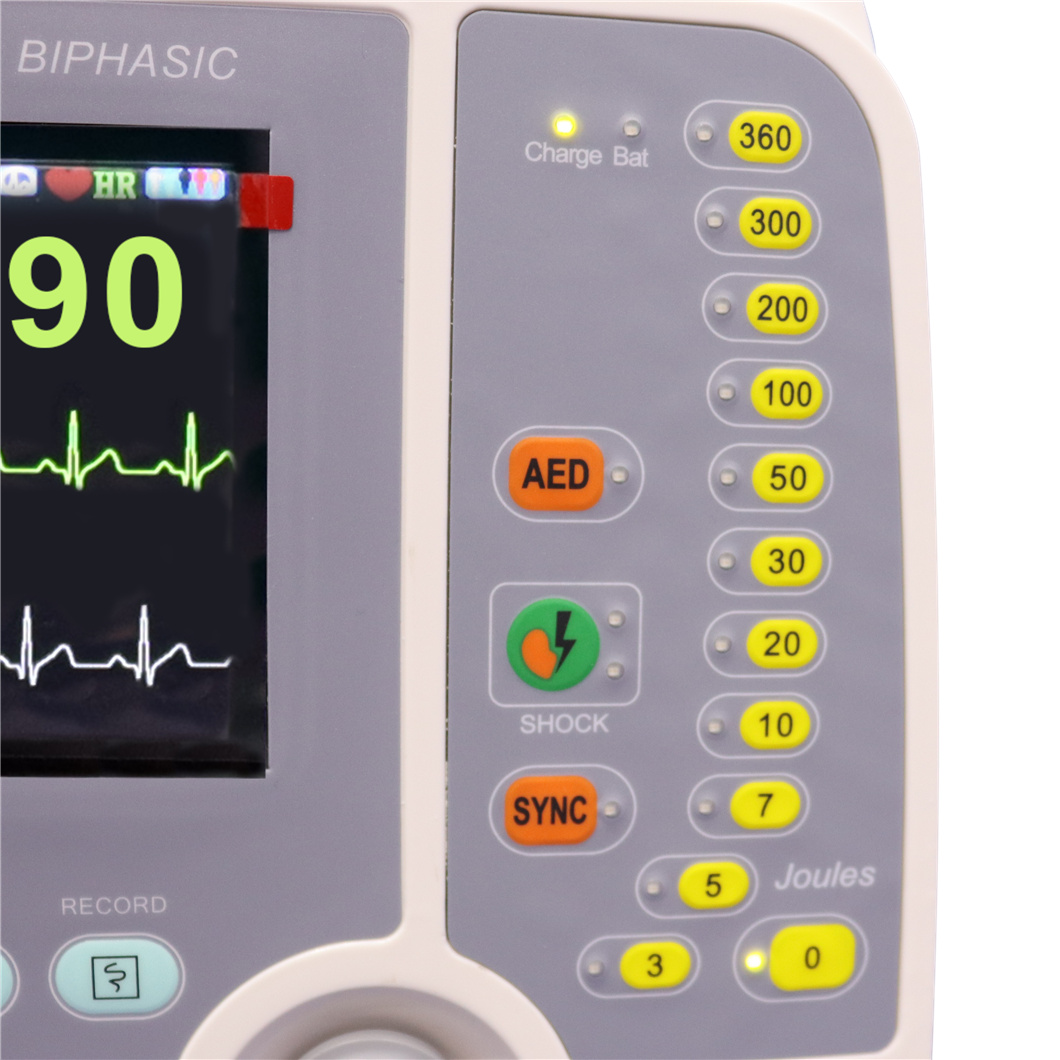

Energy Selection
|
Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
|
|

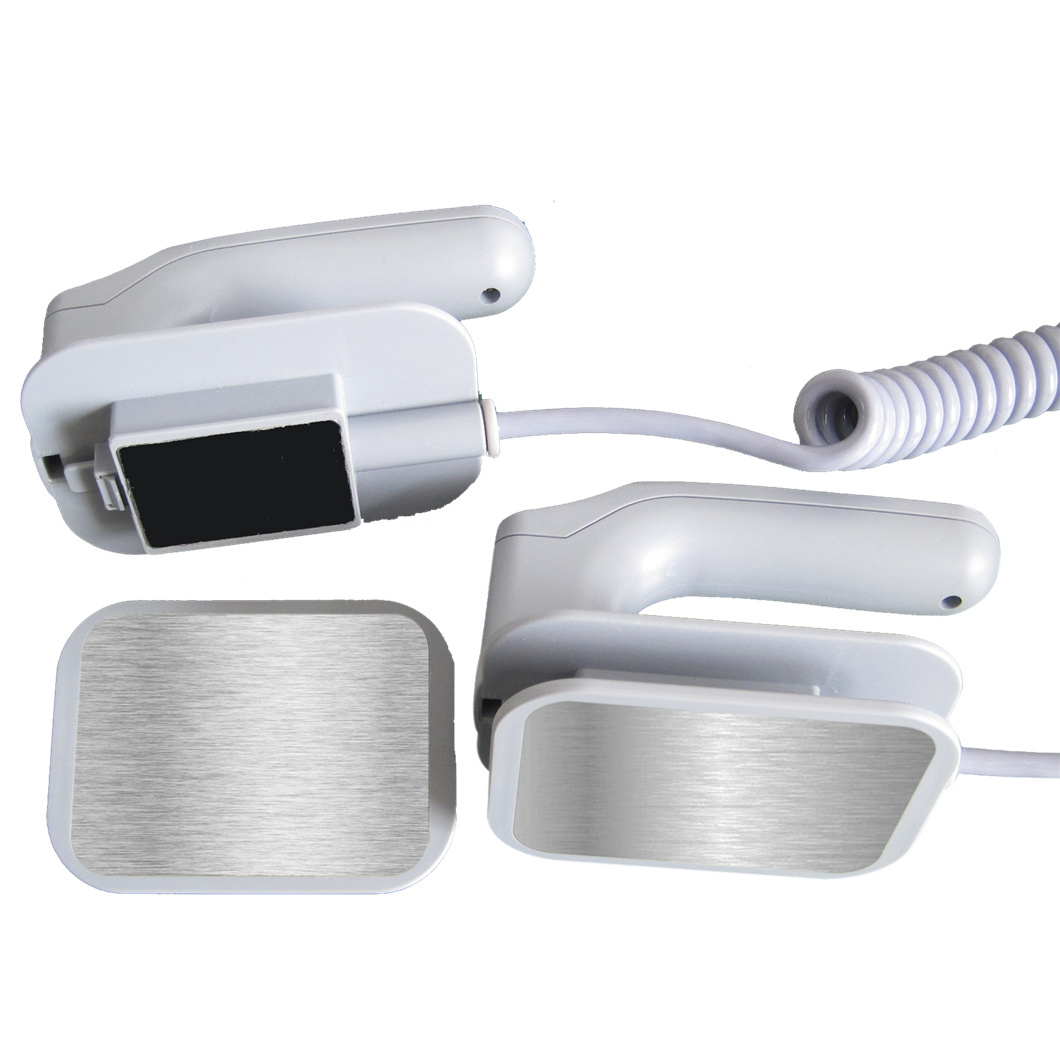

Standard Adult/Pediatric Paddles
|

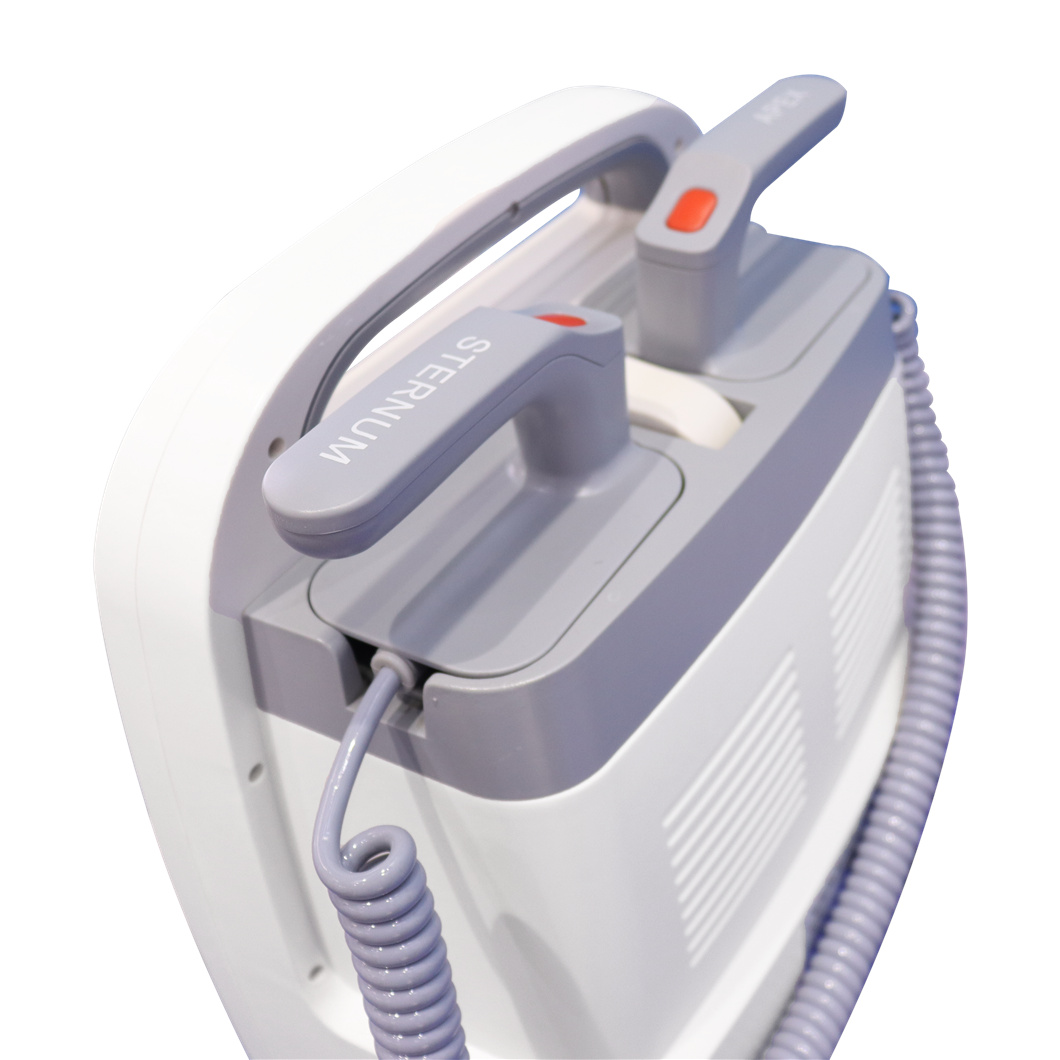

Reusable external adult paddles (pediatric paddles integrated)
|
|
AED Optional
|
Adult Mode: 150J/150J/200J
120J/120J/150J Children Mode: 50J/50J/75J 30J/30J/50J |
|

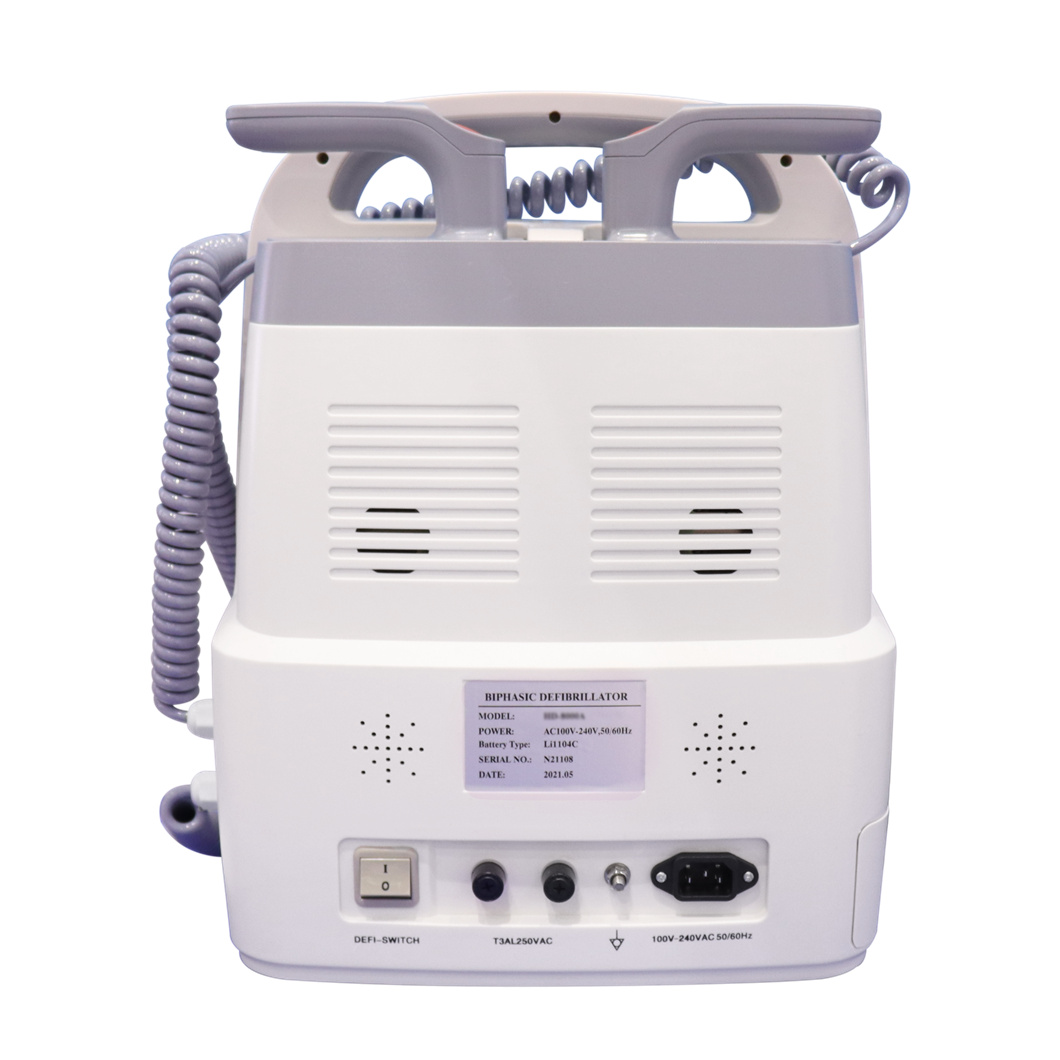

Power requirements
|
|
|
AC Power supply
|
100V~240V, 50Hz/60 Hz
|
|
Vehicle Voltage (Option)
|
DC 12V
|
|
Internal Battery Backup
|
|
|
Battery type
|
Rechargeable Li-ion battery
|
|
Charging time
|
Time-Minimum of 4 hours for full charging
|
|
Battery charging
|
During AC Power Supply operation of the device
|
|
Charging /Low Battery Indication
|
Red LED
|
|
Battery Capacity
|
100% of the battery will provide 120-min of monitoring; and 30 discharges at 360 joules
|
